High-Precision Labeling Solutions for Flat Panels & Components
Precision labeling solutions for flat plastic, metal, and electronic modules. Accurate, bubble-free, and vision-system compatible.
The solution
⭐ Why Choose ALM for Flat Surface Labeling?
✔ High Labeling Accuracy
Vision-guided positioning ensures ±0.1–0.2 mm precision.
✔ Multi-Material Compatibility
Works with plastic, metal, glass, PCB, panels, and fixtures.
✔ Bubble-Free & Wrinkle-Free
Integrated scraper mechanism ensures smooth and flawless label application.
✔ Fully Automated Integration
Supports conveyor lines, MES data reporting, and barcode binding.
Typical Applications & Scenarios
1. Mobile & Electronics Enclosures
-
Use: Smartphone frames, protective films, die-cut labels
-
Feature: High-speed, stable placement, no offset
2. Metal Panels & Appliances
-
Use: Appliance panels, heat sinks, structural parts
-
Feature: High repeatability for large flat surfaces
3. Industrial Boards & PCB Top Labels
-
Use: Barcodes, model labels, UL labels
-
Feature: Auto-alignment via vision sensors
4. Modules & Fixtures
-
Use: Small flat components
-
Feature: UPH 3000–6000 for mass production
🔧 Recommended Systems (Solution-Oriented)

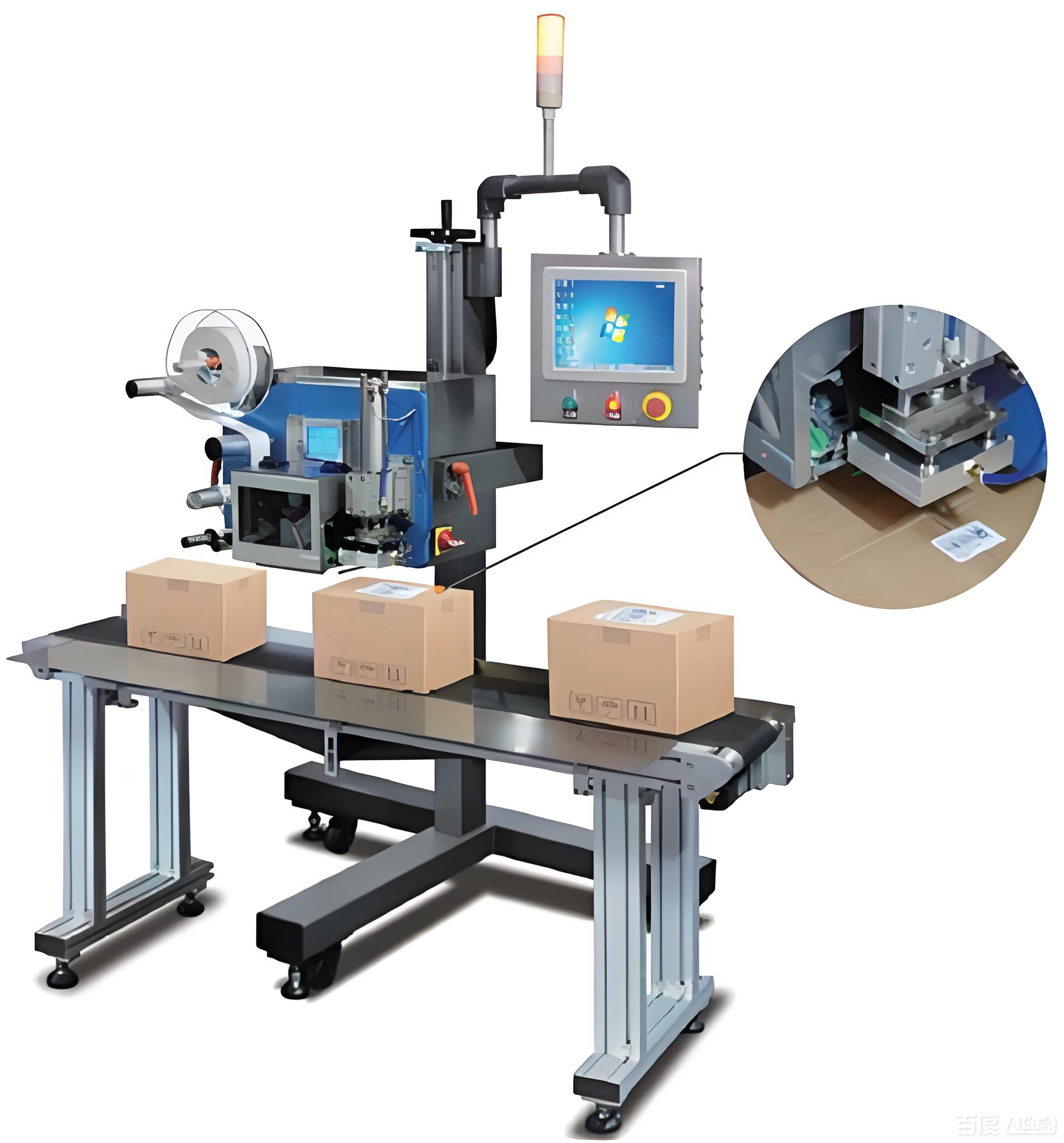

Solution A: ALM-1000 Flat Surface Automatic Labeling System
-
Application: Standard flat plastic & small metal parts
-
Highlight: High precision, cost-effective, suitable for medium-speed production lines
-
Optional Features: Vision alignment / Pneumatic scraper / Pick-and-place gripper
Solution B: ALM-1500 High-Speed Flat Labeling Line
-
Application: Consumer electronics, automotive electronics
-
Highlight: High UPH, stable structure, expandable, line integration ready
-
Optional Features: Barcode binding / OCV inspection / Reject mechanism
Solution C: ALM-3000 Vision-Guided Flat Labeling Robot
-
Application: High-precision, complex labeling tasks
-
Highlight: 6-axis + vision positioning, handles complex fixtures
-
Optional Features: 3D positioning / MES integration / Laser marking integration
Process Flow
-
Part loading via fixture or conveyor
-
Vision alignment (optional)
-
Automatic label pick-up
-
Flat surface application + scraper for air removal
-
OCV inspection (optional)
-
Finished part outflow
