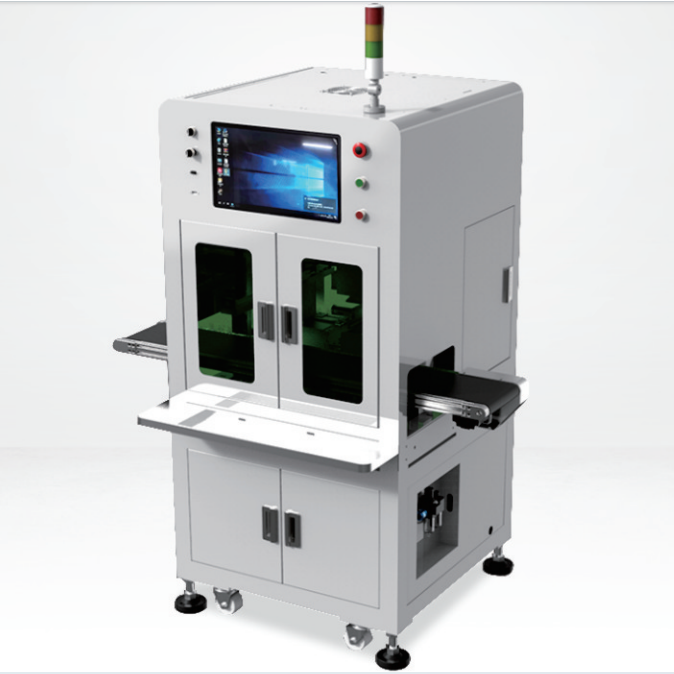

Precision Vision Labeling Platform with Real-time Printing Capability
Designed for products requiring high-accuracy back-adhesive placement, this system combines
precision motion control with integrated printing and dual-camera vision guidance to ensure
unique labels, stable throughput, and consistent placement quality.
Its versatile architecture supports multiple industries including electronics, toys, and consumer packaging,
delivering reliable results for high-value production lines.
Suitable for a wide range of products requiring back-adhesive or pressure-sensitive labels.
- 3C electronics and accessories
- Toys and consumer products
- Homeware and gift packaging
- Any application requiring unique printed labels and high placement accuracy
Labels are automatically peeled from the feeder and positioned on a non-stick pickup surface.
A four-axis robotic arm picks up and places the adhesive with precision.
The bottom camera detects real-time adhesive position, and the top camera identifies the product coordinates.
Proprietary algorithms calculate exact placement offsets for highly accurate application.
Real-time printing ensures each label is unique, providing traceability and compliance for industrial production.
Placement accuracy reaches ±0.05 mm.
| Placement Yield | ≥ 99.5% |
| Process Scrap Rate | ≤ 1% |
| Operational Stability | ≥ 95% |
| Throughput Capacity | 1,500 – 2,000 units/hour |
| Mechanical Platform | Precision ball screw and linear guide system (HIWIN / TBI) |
| Drive & Motion | Servo and closed-loop stepper motor configuration |
| Real-time Printing | Zebra ZT610 or equivalent |
| Vision System | Dual industrial cameras (6–20 MP) |
| Control Platform | Integrated motion and vision control system |
| Industrial Computer | Industrial PC, Intel® Core™ i5 class |
Engineered for manufacturers seeking traceable, high-precision labeling
with reliable throughput, minimal variation, and integrated printing capability.
Ideal for production lines requiring unique label identification and consistent quality across high-value consumer or industrial products.
